RIKUTEC Quick Connect System

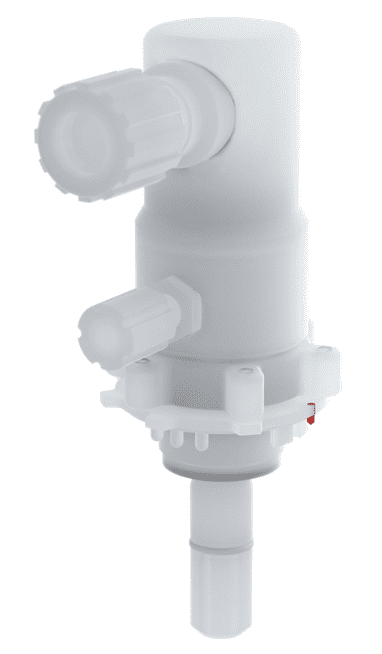

Dispense and Recirculation Head

RIKUTEC Dispense and Recirculation Heads are a vital component for accurate and precise dispensing and filling of high-purity chemicals. They provide a secure and leak-proof connection, offer a variety of flow rates, and can be customized to suit specific chemical dispensing and filling needs. With the RIKUTEC dispense or recirculation head, chemical dispensing or filling becomes a streamlined and efficient process, improving workplace safety and productivity.

Advantage / application Accessories / Equipment Technical specifications Advice & help Brochure Brochure

Advantage / application

Dispense and Recirculation Head

  • Made from high-purity PE / PVDF, conductive and non-conductive
  • Dispense or recirculation capable
  • Suitable for high-purity, most corrosive and flammable chemicals
  • Built-in coding system avoids cross-contamination
  • Cleanroom molded and machined
  • Can be ordered coded for a specific chemical
ALL PLASTIC CONTAINER
  • No steel components
  • Corriosion-free
  • Energy absorbing
100% RECYCLABLE
  • Only one construction material – easy to remanufacture
  • Reusable container
Highest safety standards
  • Secondary containment
  • UN-certified

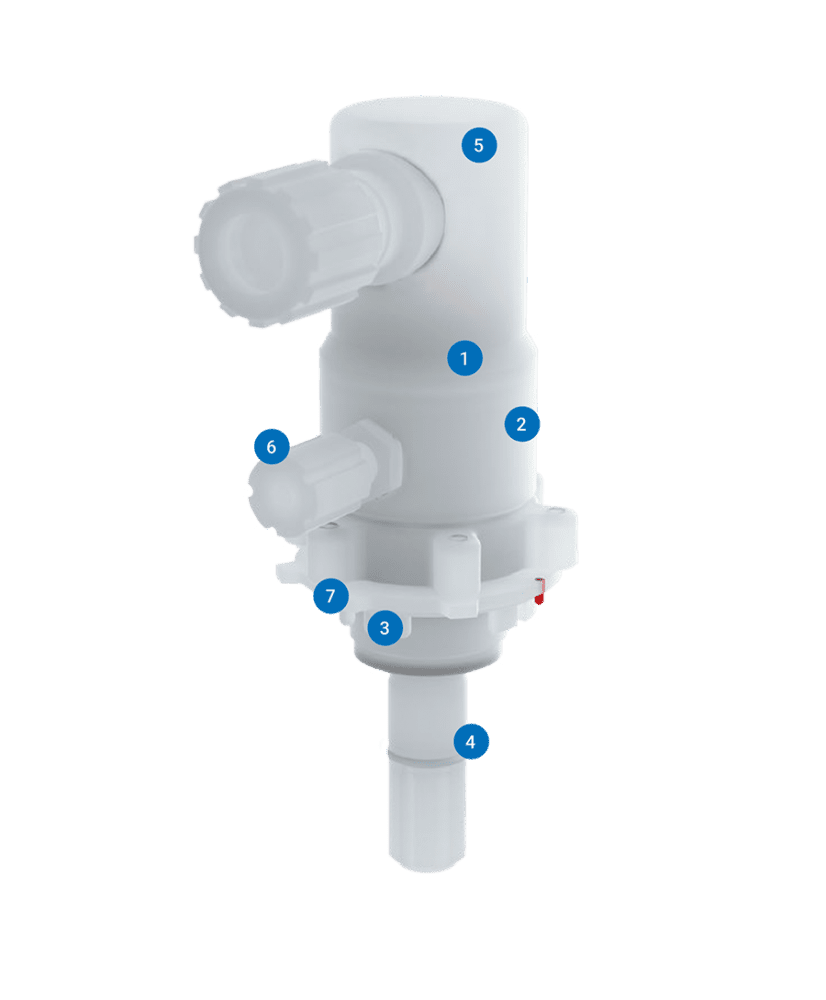

Technical specifications

  1. Built-in Check Value to Control Backflow into Container
  2. Made from High-Purity Resin in Cleanroom Environment
  3. Key-Coding System for Cross-Contamination Control
  4. Gaskets for Chemical Compatibility (Kalrez, Viton, EPDM)
  5. Fluid Connector in different sizes and orientations (Horizontal F3/4″ shown)
  6. Simultaneous Venting in different sizes (F3/8″ shown)
  7. PEEK Threading for Durability
